Advanced Thermal Imaging Solution for Accurate Temperature Analysis

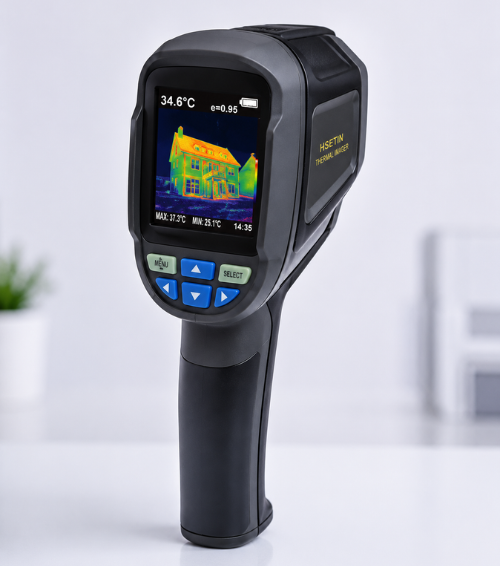

MxRady Lab Solutions Pvt. Ltd. offers Hsetin Thermal Imager designed for accurate non-contact temperature measurement and real-time thermal inspection applications. These thermal imagers are widely used in industrial inspections, electrical maintenance, building diagnostics, equipment monitoring, research laboratories, and technical service applications where fast and precise temperature analysis is important.
In many industrial and electrical environments, hidden temperature variations may indicate equipment faults, overheating, insulation issues, or maintenance problems that are not visible during normal inspection. Thermal imaging technology helps detect these issues early, supporting safer operations and preventive maintenance planning.
Advanced Infrared Imaging for Accurate Temperature Analysis
Discover hidden temperature variations with the Hsetin Thermal Imager, designed for precise non-contact temperature measurement and real-time thermal visualization.
Suitable for:
Industrial Inspections Electrical Maintenance Building Diagnostics Equipment Monitoring Research Applications Technical Service Operations
this thermal imaging device helps users detect faults quickly and analyze temperature differences efficiently.
The advanced infrared imaging system captures heat patterns and converts them into clear thermal images for easier analysis and interpretation.
Infrared Imaging
Advanced Infrared Imaging Technology
Reliable Non-Contact Temperature Measurement
The Hsetin Thermal Imager is equipped with advanced infrared (IR) sensor technology designed to detect and measure heat variations without physical contact.
The device captures thermal energy patterns and converts them into easy-to-understand thermal images, helping users identify:
For example, in electrical maintenance applications, overheating wiring or overloaded circuits may not always be visible during manual inspection. Thermal imagers help technicians identify these heat abnormalities early before they develop into larger operational or safety issues.
Similarly, in building diagnostics, thermal imaging can help identify insulation gaps, moisture intrusion, or hidden temperature leakage areas.
Thermal Display
Real-Time Thermal Visualization
Real-time thermal viewing helps users locate overheating parts, insulation issues, and temperature differences during on-site inspection work. It supports faster diagnosis in electrical, mechanical, HVAC, building, and preventive maintenance applications.
The high-resolution thermal display and user-friendly interface support accurate temperature analysis even in demanding industrial environments.
Allows users to measure temperature safely without direct physical contact.
02
High-Resolution Thermal Imaging Display
Provides clear thermal visualization for better inspection accuracy.
03
Advanced Infrared Sensor Technology
Supports precise heat detection and reliable temperature readings.
04
Real-Time Heat Detection
Enables quick identification of temperature variations and abnormal heat patterns.
05
Portable & Lightweight Design
Easy to carry and suitable for on-site inspection work.
06
Durable Industrial Construction
Designed for regular use in industrial and technical environments.
07
Fast Response Performance
Supports efficient inspection and real-time monitoring applications.
Applications
Applications of Hsetin Thermal Imager
Our thermal imagers are commonly used in:
These instruments support non-contact temperature analysis for safety checks, troubleshooting, and preventive maintenance. Clear thermal images help technicians inspect equipment conditions and plan service work with better confidence.
Electrical Inspections
Industrial Maintenance
Building Diagnostics
HVAC System Inspection
Mechanical Equipment Monitoring
Research Laboratories
Preventive Maintenance Programs
Technical Service Applications
Safety Inspections
Industrial Troubleshooting
Thermal Inspection
Why Thermal Imaging Matters
In industrial and electrical systems, hidden heat variations can often indicate developing equipment issues or operational risks.
Without proper thermal inspection, problems such as:
overheating circuits
loose electrical connections
may remain undetected until larger failures occur.
Thermal imaging technology helps users identify these issues earlier, supporting:
Why Choose Hsetin
Why Choose Hsetin Thermal Imager?
01
Detects hidden heat issues quickly
02
Improves inspection safety through non-contact operation
03
Helps reduce maintenance time and operational costs
04
Provides accurate and reliable thermal analysis
05
Suitable for professionals and technicians
06
Portable and easy to operate
07
Reliable for industrial and technical applications
Preventive Maintenance
Accurate Thermal Inspection
Regular thermal inspection helps identify abnormal heating before it becomes a larger equipment or safety problem, making it useful for routine maintenance rounds and technical diagnosis.
Hsetin Thermal Imager is designed to support accurate thermal inspection, equipment monitoring, and preventive maintenance across industrial and technical environments.
Sub Products
Hsetin Thermal Imager Product Range
Explore portable thermal cameras and infrared imaging solutions for non-contact temperature analysis, industrial inspection, and preventive maintenance.
01
HT-02
HT-02 Thermal Imaging Camera
Compact infrared thermal camera for inspection and temperature analysis.
02
HT-04
HT-04 Thermal Imaging Camera
Advanced thermal imaging with clear display and enhanced resolution.
03
HT-A2+
HT-A2+ Touch Screen Thermal Imager
Touch-screen thermal inspection solution for clear and efficient analysis.
04
HT-18+
HT-18+ Thermal Imager
High-resolution thermal sensor for detailed industrial diagnostics.
05
HT-H8 WIFI
HT-H8 WIFI Thermal Camera with Manual Focus
Manual-focus thermal camera with WiFi and detailed thermal visualization.
Hsetin Sub Product

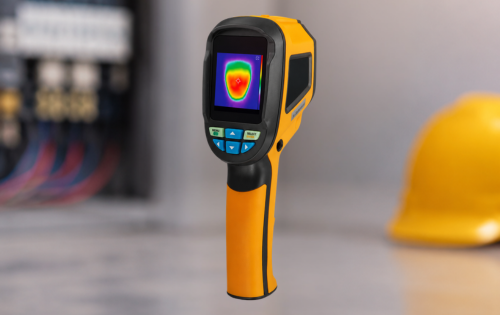

HT-02 Thermal Imaging Camera is designed for accurate temperature analysis and real-time thermal inspection applications where non-contact measurement, fast detection, and reliable performance are important. These thermal imaging cameras are widely used in industrial inspections, electrical maintenance, building diagnostics, HVAC systems, mechanical testing, research laboratories, and preventive maintenance applications for identifying heat-related issues and temperature variations.
The thermal imaging camera helps users detect hidden temperature differences quickly and efficiently, supporting safer inspections and faster fault identification. In industrial and technical environments, accurate thermal analysis is important because overheating, electrical faults, insulation failures, and equipment issues may not always be visible through normal inspection methods.
Equipped with infrared thermal sensing technology and a clear color display, the device converts heat patterns into visible thermal images for easier analysis and monitoring. Its compact and portable design allows convenient field usage during industrial inspections, electrical maintenance, building evaluations, and equipment diagnostics.
HT-02 Thermal Imaging Camera is designed to provide stable imaging performance and dependable thermal analysis during routine industrial and technical applications. Fast and accurate thermal detection helps technicians and professionals improve maintenance efficiency, reduce downtime, and enhance operational safety.
This thermal imaging camera is suitable for industrial inspections, electrical systems, building diagnostics, HVAC applications, research laboratories, maintenance operations, and technical environments requiring accurate thermal analysis, efficient heat detection, and dependable infrared imaging solutions.
Technical Specifications
Parameters
Details
Display
2.4" Color Display
Resolution
60×60
Thermal Sensitivity
≤0.1°C
Measuring Mode
Infrared Focal Plane Measuring Temperature
Temperature Range
-20°C to 300°C (-4°F to 572°F)
Measuring Accuracy
±2% dg/dl / ±2°C
Image Frequency
25Hz
Weighting Range
8–14um
Emissivity
0.1–1.0 Adjustable
Focus Mode
Fixed
Palette
Iron Color, Rainbow, Black and White
Image Storage
4G Card
File Format
BMP
Functions
Language/date time format/automatic shutdown
Battery
Type-4 AA Alkaline Batteries
Operating Temperature
0–50°C
Storage Temperature
-40–70°C
Humidity
<90%RH
Vibration
2G, IEC 60068-2-6
Drop Resistance
2m
Size
236×80×62mm
Weight
410g
HT-04 Thermal Imaging Camera is designed for advanced temperature analysis and real-time thermal inspection applications where accurate non-contact measurement, fast heat detection, and reliable imaging performance are important. These thermal imaging cameras are widely used in industrial inspections, electrical maintenance, building diagnostics, HVAC systems, mechanical testing, research laboratories, and preventive maintenance applications for identifying hidden thermal issues and abnormal temperature variations.
The thermal imaging camera helps users detect overheating, electrical faults, insulation problems, and equipment abnormalities quickly and efficiently, supporting safer inspections and faster maintenance decisions. In industrial and technical environments, accurate thermal analysis is important because many equipment failures and electrical issues cannot be identified through standard visual inspection methods.
Equipped with advanced infrared thermal sensing technology and a 2.4-inch color display, the device converts heat patterns into detailed thermal images for easier monitoring and analysis. The visible image resolution and multiple color palette modes help improve image clarity and thermal interpretation during industrial and technical inspection procedures.
HT-04 Thermal Imaging Camera is designed to provide stable imaging performance and dependable thermal analysis during routine field operations. Its portable and lightweight design allows convenient usage during electrical inspections, building evaluations, mechanical maintenance, HVAC diagnostics, and industrial safety monitoring applications.
This thermal imaging camera is suitable for industrial inspections, electrical systems, research laboratories, HVAC applications, maintenance operations, building diagnostics, and technical environments requiring accurate thermal analysis, efficient heat detection, and dependable infrared imaging solutions.
Technical Specifications
Parameters
Details
Display
2.4 inch Color Display
Resolution
220 × 160
Visible Image Resolution
300,000 Pixel
Thermal Sensitivity
0.07°C
Field Angle / Shortest Focus Length
27° × 35° / 0.5m
Measuring Mode
Infrared Focal Plane Measuring Temperature
Temperature Range
-20°C to 300°C (-4°F to 572°F)
Measuring Accuracy
±2.5% Digital ±2.5°C
Wavelength Range
8–14µm
Image Format
JPG
Emissivity
0.1–1.0 Adjustable
Focus Mode
Fixed
Palette
Rainbow, Black & White, Iron Oxide Red, Cold Color
Set Control
Unit Adjustment / Language / Date Time
Battery Service Life
2 Hours
Battery Type
No.5 AA Battery × 4
Operating Temperature
0°C–50°C
Storage Temperature
-40°C–80°C
Vibration Resistance
2G, IEC 60068-2-6
Image Storage
4G
Size
218 × 95 × 63 mm
Weight
320g
HT-A2+ Touch Screen Thermal Imager is designed for advanced thermal inspection and accurate temperature analysis applications where real-time heat detection, high imaging clarity, and user-friendly operation are important. These thermal imagers are widely used in industrial inspections, electrical maintenance, HVAC diagnostics, building inspections, mechanical testing, research laboratories, and preventive maintenance applications for identifying hidden thermal issues and abnormal temperature variations.
The thermal imager helps users detect overheating components, electrical faults, insulation problems, and equipment abnormalities quickly and efficiently, supporting safer inspections and faster maintenance decisions. In industrial and technical environments, accurate thermal analysis is important because many heat-related issues cannot be identified through normal visual inspection methods.
Equipped with advanced infrared thermal sensing technology and a touch screen interface, the device provides smooth operation and easier thermal image analysis during field inspections and maintenance procedures. The high-resolution thermal display helps users interpret temperature differences more clearly, improving diagnostic accuracy and operational efficiency.
Its portable and ergonomic design allows convenient usage during electrical inspections, industrial maintenance, building diagnostics, mechanical analysis, and HVAC system monitoring. The touch screen functionality improves navigation and simplifies operational control during routine and advanced thermal inspection applications.
HT-A2+ Touch Screen Thermal Imager is designed to deliver stable imaging performance and dependable thermal analysis for industrial, commercial, and research environments requiring accurate heat detection and reliable infrared imaging solutions.
This thermal imager is suitable for industrial inspections, electrical systems, HVAC applications, research laboratories, preventive maintenance operations, building diagnostics, and technical environments requiring accurate thermal analysis, efficient fault detection, and dependable infrared imaging performance.
HT-18+ Thermal Imager is designed for advanced thermal inspection and high-accuracy temperature analysis applications where reliable heat detection, detailed thermal imaging, and stable operational performance are important. These thermal imagers are widely used in industrial inspections, electrical maintenance, mechanical diagnostics, HVAC systems, building inspections, research laboratories, and preventive maintenance applications for identifying hidden thermal faults and abnormal temperature variations.
The thermal imager helps users quickly detect overheating components, electrical failures, insulation issues, and equipment abnormalities, supporting safer inspections and faster maintenance decisions. In industrial and technical environments, accurate thermal analysis is important because many heat-related problems cannot be identified through standard visual inspection methods.
Equipped with advanced infrared imaging technology and a high-resolution thermal sensor, the device converts heat patterns into detailed thermal images for accurate monitoring and diagnostics. The large display screen and visible light imaging support improved thermal interpretation and easier inspection during field operations.
Its durable and portable design allows convenient usage during industrial inspections, electrical system analysis, HVAC diagnostics, mechanical maintenance, and building evaluations. Stable thermal imaging performance and fast response help technicians improve operational efficiency and reduce downtime during maintenance procedures.
HT-18+ Thermal Imager is suitable for industrial inspections, electrical maintenance, HVAC applications, research laboratories, preventive maintenance operations, building diagnostics, and technical environments requiring accurate thermal analysis, efficient heat detection, and dependable infrared imaging solutions.
Technical Specifications
Parameters
Details
Infrared Image Resolution
256 × 192
Infrared Response Band
8 to 14µm
Infrared Detector Type
Vanadium Oxide Uncooled Infrared Focal Plane
Field Angle
56° × 42°
Display Size
3.2-inch (240 × 320)
Visible Light Resolution
640 × 480
Thermal Imaging Frame Rate
≤25Hz
Temperature Measurement Range
-20°C to +550°C (-4°F to 1022°F)
Measurement Accuracy
15°C to 550°C ±2°C or ±2%; -20°C to -15°C ±4°C
HT-H8 WIFI Thermal Camera with Manual Focus is designed for advanced thermal inspection and high-precision temperature analysis applications where accurate heat detection, flexible focusing control, and wireless connectivity are important. These thermal cameras are widely used in industrial inspections, electrical maintenance, HVAC diagnostics, building inspections, mechanical testing, research laboratories, and preventive maintenance applications for identifying hidden thermal faults and abnormal temperature variations.
The thermal camera helps users quickly detect overheating components, electrical failures, insulation issues, and equipment abnormalities, supporting safer inspections and faster maintenance decisions. In industrial and technical environments, accurate thermal analysis is important because many heat-related problems cannot be identified through standard visual inspection methods.
Equipped with advanced infrared imaging technology, manual focus control, and built-in WiFi functionality, the device delivers detailed thermal imaging and improved inspection flexibility during field operations. The large TFT color display and high-resolution thermal imaging support clear temperature visualization and accurate thermal analysis for industrial and technical applications.
Its manual focus feature helps users achieve more precise thermal inspection across different distances and working conditions. The camera also supports real-time temperature output and multiple image palettes for improved heat pattern analysis and easier thermal interpretation.
HT-H8 WIFI Thermal Camera with Manual Focus is designed to provide stable thermal imaging performance and dependable analytical results during routine industrial and technical operations. Its portable and durable design allows convenient usage during electrical inspections, industrial maintenance, HVAC analysis, mechanical diagnostics, and building evaluations.
This thermal camera is suitable for industrial inspections, electrical systems, HVAC applications, research laboratories, preventive maintenance operations, building diagnostics, and technical environments requiring accurate thermal analysis, efficient heat detection, and dependable infrared imaging solutions.
Technical Specifications
Parameters
Details
Display
3.5 inch TFT Color Display
Resolution
384 × 288
Visible Image Resolution
500 Million Pixels
LCD Resolution
640 × 480
FOV / Focal Length
10° × 7.0m
Noise Equivalent Temperature Difference
≤50mK@25°C, F#1.0
Temperature Range
-20°C to 300°C (-4°F to 572°F)
Measuring Accuracy
0–100°C ±2°C, 100–300°C ±2%
Wavelength Range
8–14µm
Image Frequency
25Hz
Emissivity
0.1–1.0 Adjustable
Temperature Correction
Manual and Automatic Correction Temperature Output
Palette
Rainbow, Iron Oxide Red, Cold Color, Black & White, White & Black
Automatic Power-off Time
Selectable 5 min / 10 min / not power off automatically
